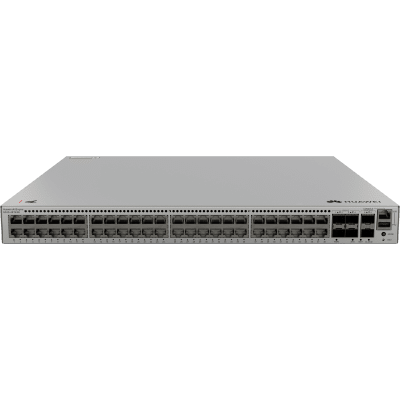

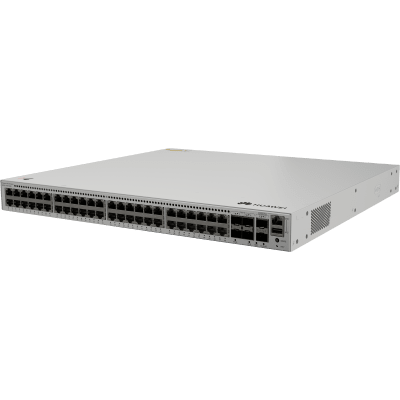

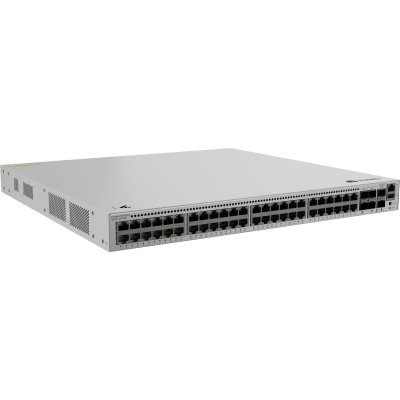

Switch Empresarial Core Gigabit Administrable Capa 3 / 48 Puertos 10/100/1000 Mbps / 4 Puertos 10GE SFP+ Uplink / 2 Puertos 10GE SFP+ (Stack) / ERPS / Ruteo Dinamico (RIP, OSPF, IS-IS y BGP) / iStack / Administración Nube Gratis
Código:
S530-48T4XE
Garantía de pagos seguros
| Switching capacity | 224 Gbit/s |
| Packet forwarding rate | 168 Mpps |
| GE RJ45 | 48 (1G/100M/10M) |
| 10G SFP+ | 4 (10G/1G) |
| iStack | Up to 9 switches of the same series in a stack |
| Number of power slots | 2 |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 25.31 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Installation type | Rack mounting,Desk mounting |
| Weight without packaging [kg(lb)] | 5.43 kg (11.97 lb) |
| Weight with packaging [kg(lb)] | 7.19 kg (15.85 lb) |
| Typical power consumption [W] | 39.10 |
| Maximum power consumption [W] | - 55.12 W (with two 80 W AC power modules) - 64.51 W (with two 180 W AC power modules) - 93.26 W (with two 1200 W DC power modules) |
| Number of fans modules | 2 |
| Redundant power supply | 1+1 Power modules without fans and power modules with fans cannot be installed in the same chassis. |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC |
| Power supply surge protection [kV] | - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left, front, and right and air exhaust from rear |
