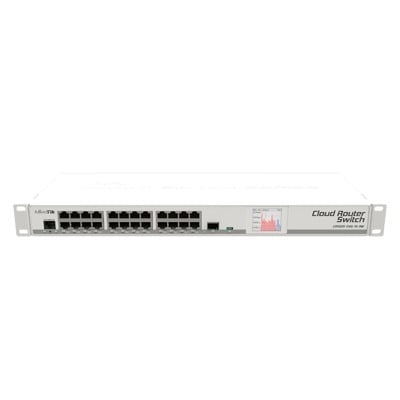

Cloud Router Switch CRS125-24G-1S-RM 24 Puertos Gigabit Ethernet y 1 Puerto SFP

Name: Cloud Router Switch CRS125-24G-1S-RM 24 Puertos Gigabit Ethernet y 1 Puerto SFP
Brand: MIKROTIK
SKU: CRS125-24G-1S-RM
Price: 7614.0 USD
Availability: OutOfStock

Código: CRS125-24G-1S-RM

Regístrate para ver la información detallada del producto.

Garantía de pagos seguros

Formatos de pago Fibralink - garantía segura

Descripción

Código de producto	CRS125-24G-1S-RM
SFP DDMI	Sí
CPU frecuencia nominal	600 MHz
CPU número de núcleos	1
Arquitectura	MIPS-BE
Tamaño de RAM	128 MB
Puertos Ethernet 10/100/1000	24
Número de puertos USB	1
Conector de alimentación	1
PoE	Sí
voltaje de entrada el apoyo	8 V - 28 V
monitor de Voltaje	Sí
vigilancia de la temperatura de PCB	Sí
Dimensiones	443x142x44mm
Sistema operativo	RouterOS
Rango de temperatura de funcionamiento	-35C A + 65C a prueba
nivel de licencia	5
UPC	AR9344
Consumo máximo de energía	15W
Los puertos SFP	1
Tipo de ranura USB	microUSB tipo AB
Puerto serial	RJ45
tipo de almacenamiento	NAND
El tamaño de almacenamiento	128 MB

Switching results

CRS125-24G-1S-RM
Mode	Configuration	64 byte		512 byte		1518 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	37,202.4	19,047.6	5,874.1	24,060.2	2,031.9	24,674.9
Switching	Non blocking Layer 2 capacity	37,202.4	38,095.2	5,874.1	48,120.3	2,031.9	49,349.8
Switching	Non blocking Layer 1 throughput	37,202.4	25,000.0	5,874.1	25,000.0	2,031.9	25,000.0
Switching	Non blocking Layer 1 capacity	37,202.4	50,000.0	5,874.1	50,000.0	2,031.9	50,000.0

Ethernet test results

CRS125-24G-1S-RM		AR9344 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
